Concept
The
demands of today's modern farm are constantly expanding. It's time to meet the tractor that meets those
demands head on.
The KIROVETS K-743 tractor combines productivity and cost efficiency. This high horsepower 4WD tractor features an articulated frame, 435 hp Mercedes engine Stage IV (TIER 4F), 22 mph road speed, and reliable Semi-Powershift transmission, telemetry and agronavigation.
The KIROVETS K-743 tractor combines productivity and cost efficiency. This high horsepower 4WD tractor features an articulated frame, 435 hp Mercedes engine Stage IV (TIER 4F), 22 mph road speed, and reliable Semi-Powershift transmission, telemetry and agronavigation.
This website
uses cookies to ensure you get the best experience
OK
Specification
KIROVETS K-743
KIROVETS K-743
| KIROVETS K-743 | Value |
|---|---|
| Engine | |
| Engine model | Mercedes-Benz OM470LA, Stage IV | TIER 4 Final |
| Number of Cylinders | 6 inline |
| Engine size, cu in (L) | 652 (10,7) |
| Rated engine power, hp (kW) | 435 (324) |
| Rated Engine Speed, rpm | 1700 |
| Fuel Tank capacity, gal (L) | 175 (800) |
| Diesel Exhaust Fluid (DEF) tank capacity, gal (L) | 11 (40) |
| PTO | |
| PTO Horsepower, Basic / Optional Transmission, hp (kW) | 340 (250) |
| PTO Speeds, rpm | 1000 std, 540/1000 opt |
| PTO operational Type | Independent |
| Electrical System | |
| System Rating, Volts | 24/12V |
| Transmission Configuration | |
| Manufacturer | Own production |
| Transmission Type | Speeds: 16F/8R. Ranges: 4x2 (forward-reverse). 4 power shit speeds in each range. |
| Speed, mph (kph) | Max. road speed 22 mph (34 kph) , max. field speed 10.2 mph (16.5 kph) |
| Axle description | Main gear with self-locking differential. Final drives are planetary gearboxes |
| Suspended Front Axle Available | Standart for front axle |
| Frame and Steering | |
| Configuration | Frame Articulated, 4WD |
| Hydraulic System | |
| Hydraulic System Type | Closed Center, Load Sensitive (LS) |
| Main Hydraulic Pump Type | Double pump std |
| Implement Pump Flow, gpm (Lpm) | 74 (280) |
| Number of Standard Remote Valves | 4 free + 1 connected to 3pt hitch |
| Standard Pump maximum available flow at single valve, gpm (Lpm) | 37 (140) |
| 3 point hitch and drawbar | |
| 3-Point Hitch Category | Category 4 |
| Standard Lift Capacity at lift pin, lb (kg) | 20 000 (9000) |
| Drawbar Description | Category 4 std, pin 2 inch (50,8 mm), vertical load capacity 4 000 kg |
| Tires | |
| Front Tire Size | 710/70 R38 Single (std) or Duals (opt) |
| Rear Tire Size | 710/70 R38 Single (std) or Duals (opt) |
| Dimensions | |
| Max. weight, lb (kg) | 40 000 (18 000) |
Features
FRAME & SUSPENSION
Kirovets tractors are built on an articulated frame
using a spring front suspension that provides a constant wheel-to-ground contact patch and smooth
riding
ENGINE
The latest 6-cylinder in-line engine from
Mercedes-Benz provides:
- Compliance to emission standart STAGE IV | TIER 4F
- High torque even at low engine speeds
- Consistent torque over a wide engine speed range
TRANSMISSION
The time-tested and proven "T7" powershift offers
reliably smooth shifting, maximum pull, reduces operator fatigue and fuel consumption.
HYDRAULICS
Hydraulics are load sensing type with five pairs of
outputs: 1 used for 3pt hitch + 4 available plus returns. The system is supplied by a Bosch-Rexroth
axial flow pump with 74 gpm (280 l/min) capacity
3 point hitch and
drawbar in basic configuration
Ballast package
in basic configuration
PTO 1000 rpm
optional
WHEELS
Single or Duals setup
CAB

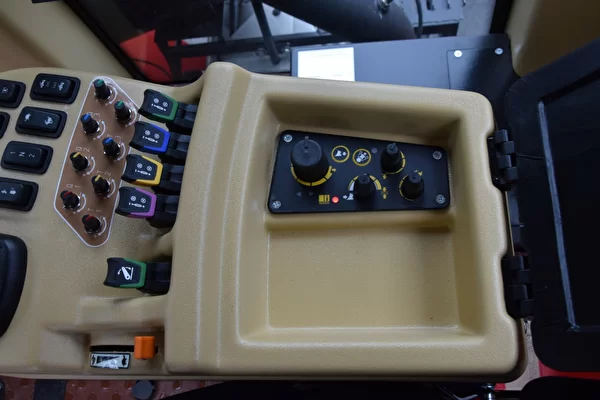

New generation of Cab called ComfortPlus. Tractor
control system KOMANDPOST allows to reduce tractor driver fatigue. Suspended axles, reinforced noise
insulation also reduce the load on the tractor driver. Air conditioning, heater allow you to control
the microclimate
PRECISION FARMING
Our clients like Trimble agronavigation system.
Also they use our telematic system.
FACTORY
We are high-power tractor leader in Eastern Europe.
We produce 2,500 powerful tractors annually.
Over the past 5 years, we have invested $ 100 million in technology upgrades. This is an investment in our quality.
We manufacture almost 70% of the tractor parts in-house at our factory. That allows us to control the costs and offer our customers the best terms for the price and availability of spare parts.
Over the past 5 years, we have invested $ 100 million in technology upgrades. This is an investment in our quality.
We manufacture almost 70% of the tractor parts in-house at our factory. That allows us to control the costs and offer our customers the best terms for the price and availability of spare parts.
Request quote
